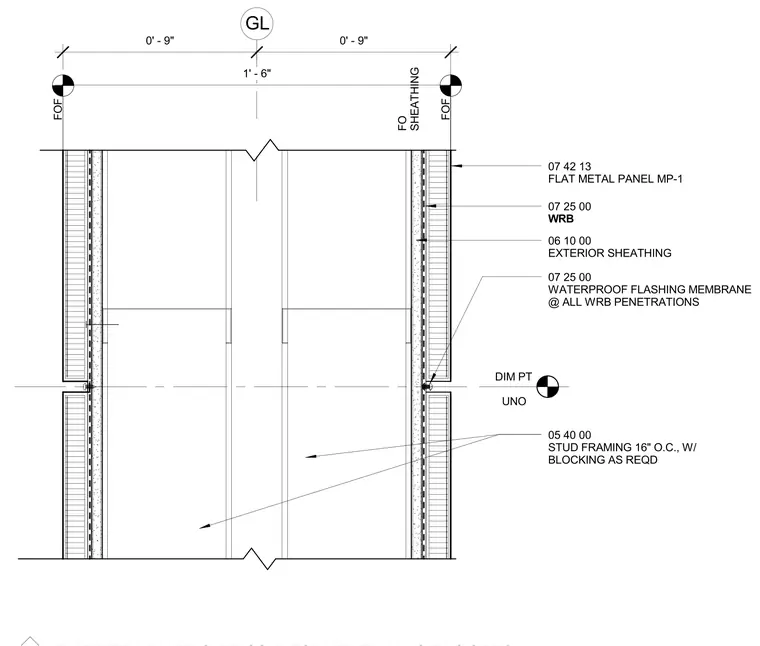

The exterior assembly consists of flat metal panels MP-1 mounted over a weather-resistive barrier and exterior sheathing. Cold-formed steel stud framing is spaced sixteen inches on center with blocking provided as required. A waterproof flashing membrane is applied at all water-resistive barrier penetrations. Dimensions measure nine inches from the grid line to the face of framing on each side.
DIM PT UNO 0' - 9" 0' - 9" FOF 07 25 00 WRB 06 10 00 EXTERIOR SHEATHING 07 42 13 FLAT METAL PANEL MP-1 GL FO SHEATHING 1' - 6" FOF 05 40 00 STUD FRAMING 16" O.C., W/ BLOCKING AS REQD 07 25 00 WATERPROOF FLASHING MEMBRANE @ ALL WRB PENETRATIONS
