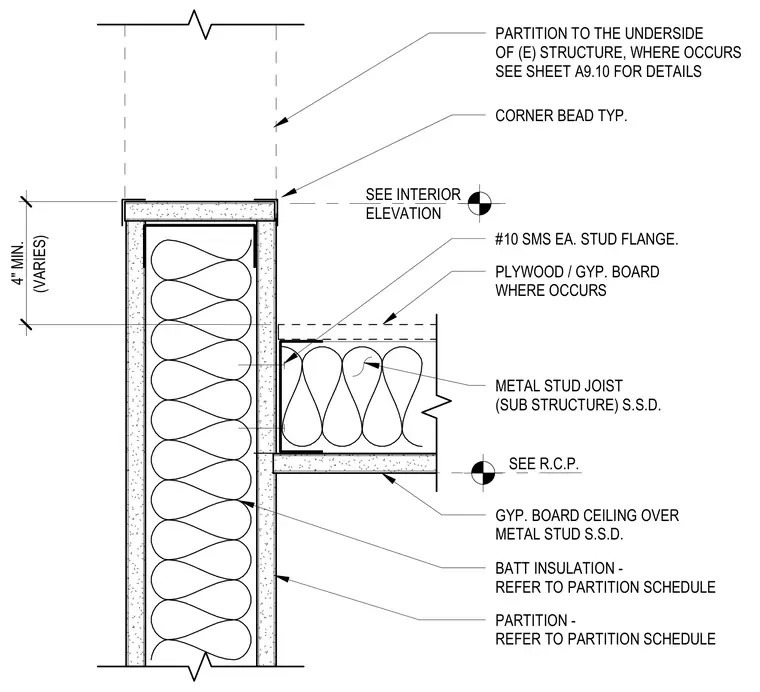

A cold-formed metal stud partition extends upward to meet an existing structure, featuring a gypsum board ceiling framed with metal stud joists secured by number 10 sheet metal screws at each stud flange. Plywood or gypsum board is installed where required, and batt insulation fills the partition cavity according to the partition schedule. A typical corner bead finishes the gypsum board edge at the ceiling intersection, and a four-inch minimum variable dimension clears the ceiling framing from the partition top.
METAL STUD JOIST (SUB STRUCTURE) S.S.D. #10 SMS EA. STUD FLANGE. PARTITION - REFER TO PARTITION SCHEDULE BATT INSULATION - REFER TO PARTITION SCHEDULE PLYWOOD / GYP. BOARD WHERE OCCURS GYP. BOARD CEILING OVER METAL STUD S.S.D. SEE R.C.P. 4" MIN. (VARIES) PARTITION TO THE UNDERSIDE OF (E) STRUCTURE, WHERE OCCURS SEE SHEET A9.10 FOR DETAILS SEE INTERIOR ELEVATION CORNER BEAD TYP.
