This one-hour rated acoustical partition consists of three and five-eighths inch minimum metal channel studs spaced at a maximum of twenty-four inches on center. The assembly is finished with two layers of gypsum board on one side and a single layer of gypsum board on the opposite side. Acoustical insulation is installed within the stud cavity to enhance sound attenuation.

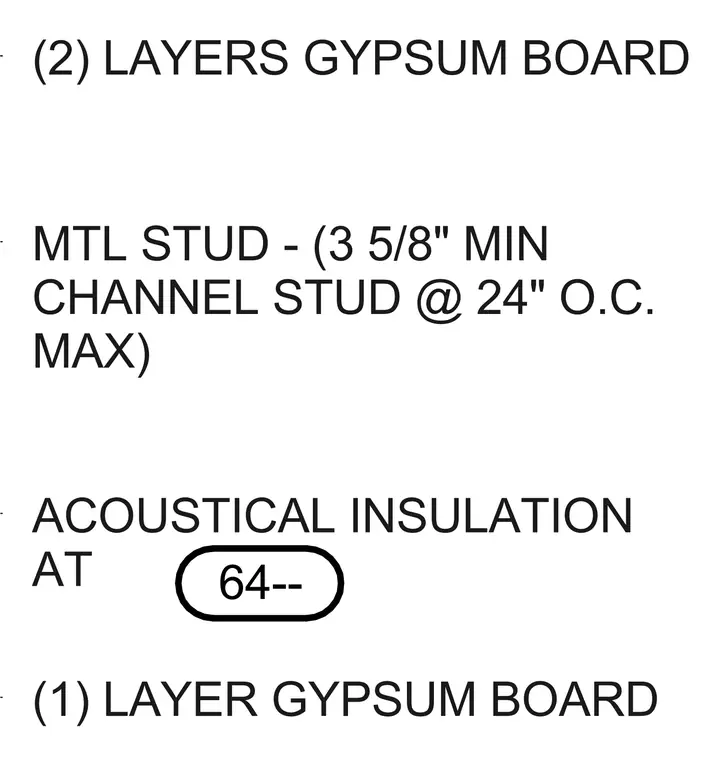

ACOUSTICAL INSULATION AT (2) LAYERS GYPSUM BOARD (1) LAYER GYPSUM BOARD MTL STUD - (3 5/8" MIN CHANNEL STUD @ 24" O.C. MAX) 64--
