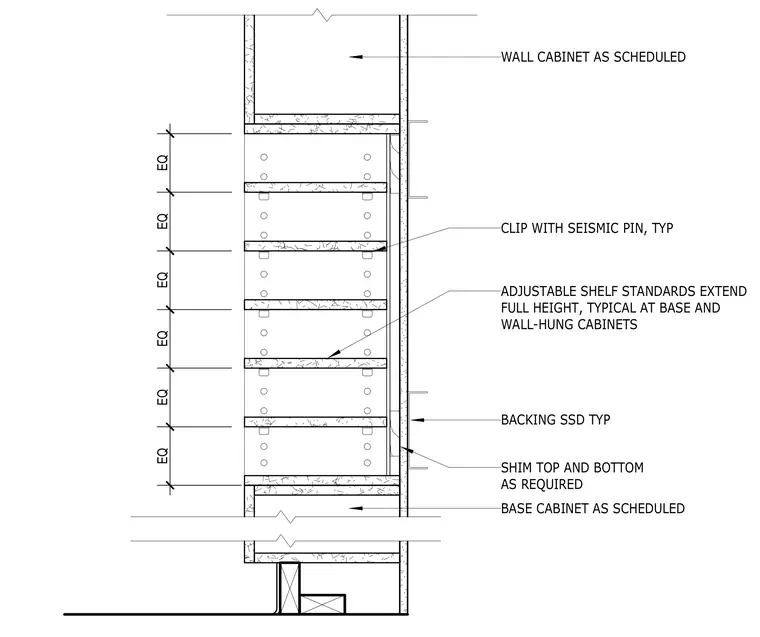

Wall and base cabinets are anchored to structural backing installed within the wall assembly. Adjustable shelf standards extend the full height of the cabinet to support multiple uniformly spaced shelves. Clips with seismic pins are provided at the shelves to prevent displacement during seismic events. Shims are installed at the top and bottom of the unit as required for proper leveling.
CLIP WITH SEISMIC PIN, TYP BACKING SSD TYP SHIM TOP AND BOTTOM AS REQUIRED ADJUSTABLE SHELF STANDARDS EXTEND FULL HEIGHT, TYPICAL AT BASE AND WALL-HUNG CABINETS WALL CABINET AS SCHEDULED BASE CABINET AS SCHEDULED EQ EQ EQ EQ EQ EQ
