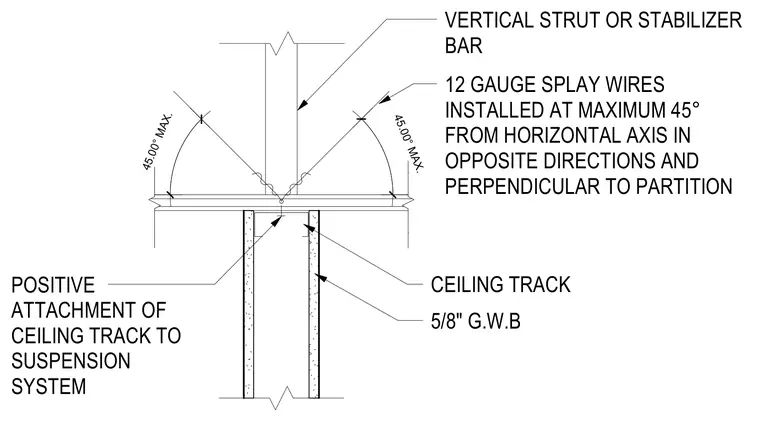

The interior partition features a ceiling track secured to the ceiling suspension system with a positive attachment. Gypsum wall board measuring five-eighths inch thick clads the framing studs. A vertical strut or stabilizer bar provides lateral support. Twelve gauge splay wires are installed at a maximum of forty-five degrees from the horizontal axis in opposite directions and perpendicular to the partition.
POSITIVE ATTACHMENT OF CEILING TRACK TO SUSPENSION SYSTEM CEILING TRACK 5/8" G.W.B 45.00° MAX. 45.00° MAX. VERTICAL STRUT OR STABILIZER BAR 12 GAUGE SPLAY WIRES INSTALLED AT MAXIMUM 45° FROM HORIZONTAL AXIS IN OPPOSITE DIRECTIONS AND PERPENDICULAR TO PARTITION
