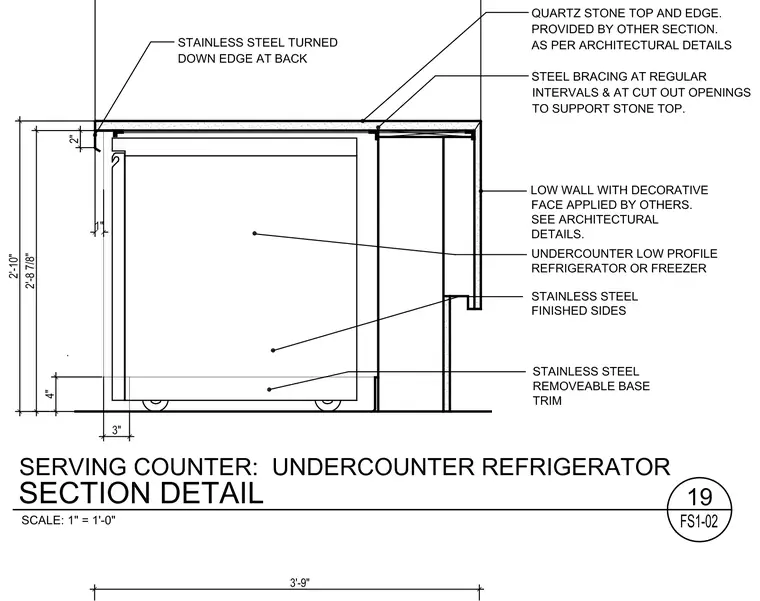

A serving counter incorporates an undercounter low profile refrigerator or freezer. The assembly features a quartz stone top and edge supported by steel bracing at regular intervals and at cut out openings. The back includes a stainless steel turned down edge, while the sides are finished in stainless steel with a removable base trim at the bottom. A low wall with a decorative face applied by others encloses the front and sides of the unit.
