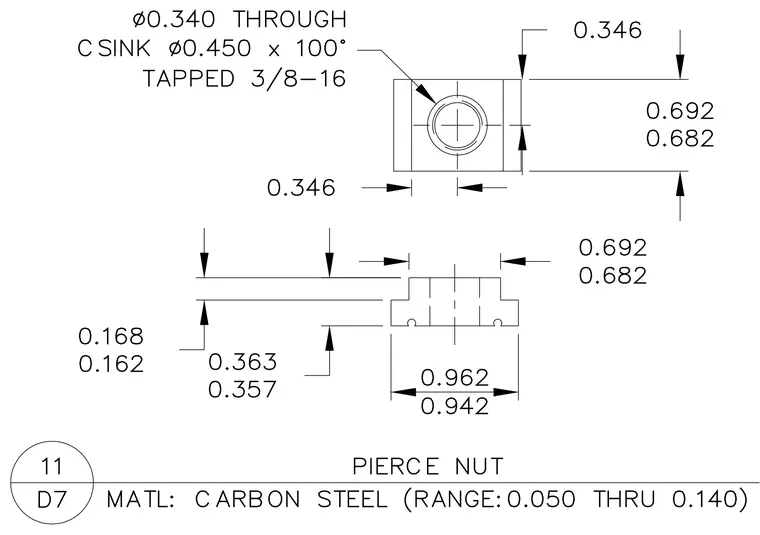

A carbon steel pierce nut features a 3/8-16 tapped hole with a 0.340 diameter through-hole and a 0.450 countersink at 100 degrees. The fastener is designed for material ranges from 0.050 to 0.140 inches thick. Overall dimensions include a width of 0.962 to 0.942 inches and height variations ranging between 0.363 and 0.357 inches.
0.692 0.682 0.346 0.346 0.363 0.357 0.692 0.682 0.962 0.942 0.168 0.162 ∅0.340 THROUGH CSINK ∅0.450 x 100° TAPPED 3/8-16 PIERCE NUT 11 D7 MATL: CARBON STEEL (RANGE:0.050 THRU 0.140) £ I ) •L • I I __ 1 1
