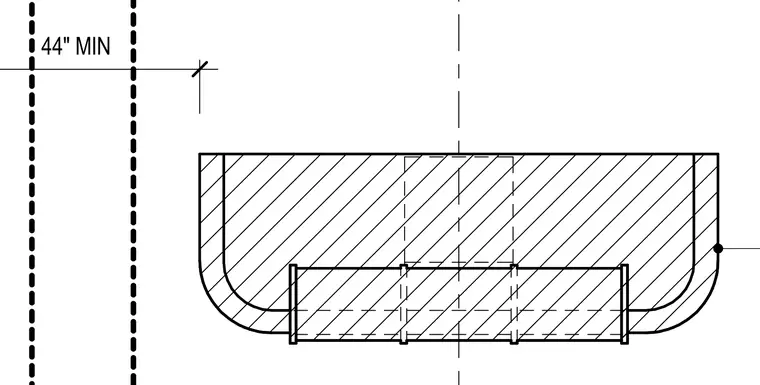

A dimensioned detail establishes a forty-four inch minimum clearance from a dashed reference boundary line to a centerline-aligned structural or architectural component.
