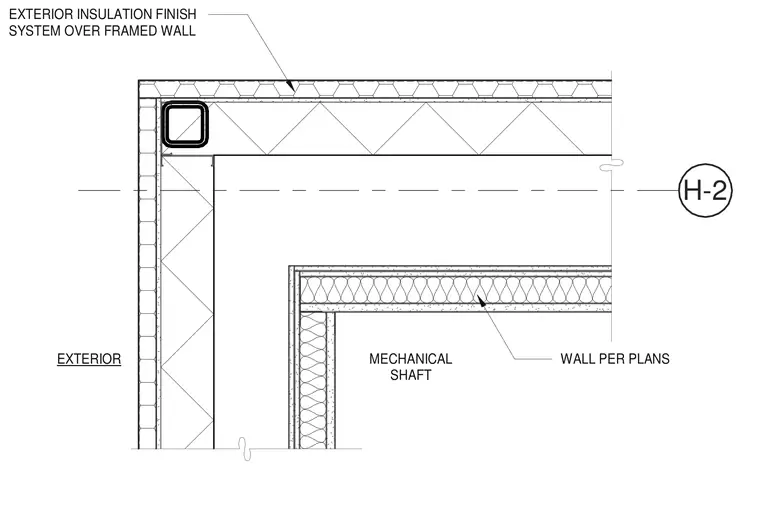

An exterior insulation and finish system clads the exterior framed wall assembly at the roof intersection. A two-hour mechanical shaft wall is framed internally with framing configurations detailed per the architectural plans.
H-2 EXTERIOR MECHANICAL SHAFT EXTERIOR INSULATION FINISH SYSTEM OVER FRAMED WALL WALL PER PLANS
