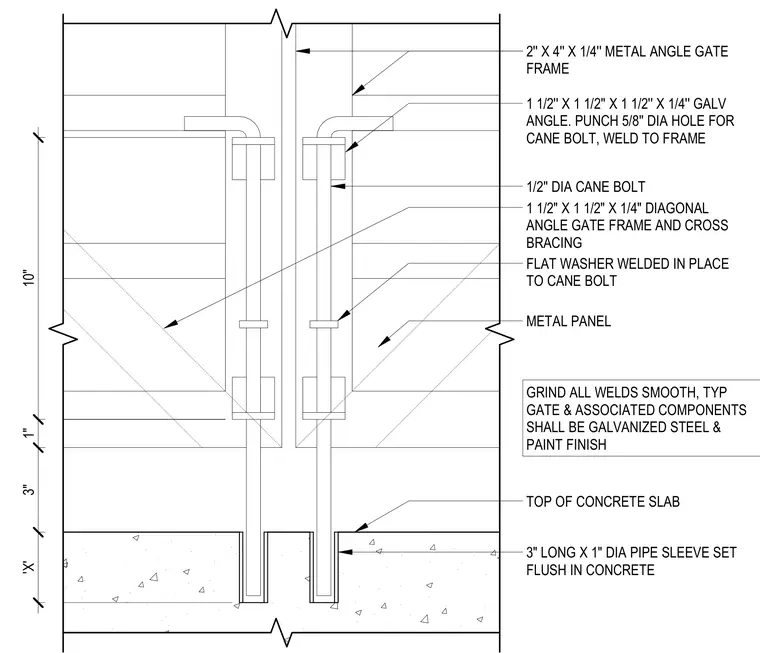

A cane bolt locking mechanism for a double-leaf steel panel gate is anchored into a concrete slab. A 1/2-inch diameter cane bolt slides vertically through a 1 1/2-inch by 1 1/2-inch by 1/4-inch galvanized angle guide, which is welded to a 2-inch by 4-inch by 1/4-inch metal angle gate frame. A flat washer is welded to the cane bolt to serve as a stop, and the drop pin engages a 3-inch long by 1-inch diameter pipe sleeve set flush into the top of the concrete slab. The gate frame is braced with 1 1/2-inch by 1 1/2-inch by 1/4-inch diagonal angles and cross-bracing behind metal panels. All welds are ground smooth, and the entire gate assembly and associated components receive a galvanized steel and paint finish.
3" LONG X 1" DIA PIPE SLEEVE SET FLUSH IN CONCRETE FLAT WASHER WELDED IN PLACE TO CANE BOLT 1/2'' DIA CANE BOLT 1 1/2'' X 1 1/2'' X 1 1/2'' X 1/4'' GALV ANGLE. PUNCH 5/8'' DIA HOLE FOR CANE BOLT, WELD TO FRAME 2'' X 4'' X 1/4'' METAL ANGLE GATE FRAME TOP OF CONCRETE SLAB 1 1/2" X 1 1/2" X 1/4" DIAGONAL ANGLE GATE FRAME AND CROSS BRACING METAL PANEL 10" 1" 3" 'X' GRIND ALL WELDS SMOOTH, TYP GATE & ASSOCIATED COMPONENTS SHALL BE GALVANIZED STEEL & PAINT FINISH
