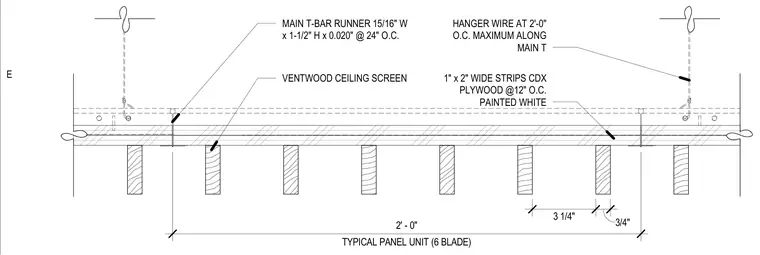

This suspended ceiling assembly features a Ventwood ceiling screen constructed with one-inch by two-inch wide CDX plywood strips spaced at twelve inches on center and painted white. The wood screen units are supported by main T-bar runners measuring fifteen-sixteenths inches wide by one and one-half inches high by 0.020 inches thick spaced at twenty-four inches on center. The grid is suspended overhead by hanger wires spaced at two feet zero inches on center maximum along the main tees. Typical panel units consist of six blades spanning two feet zero inches.
TYPICAL PANEL UNIT (6 BLADE) 2' - 0" 3 1/4" 3/4" MAIN T-BAR RUNNER 15/16" W x 1-1/2" H x 0.020" @ 24" O.C. VENTWOOD CEILING SCREEN 1" x 2" WIDE STRIPS CDX PLYWOOD @12" O.C. PAINTED WHITE HANGER WIRE AT 2'-0" O.C. MAXIMUM ALONG MAIN T E
