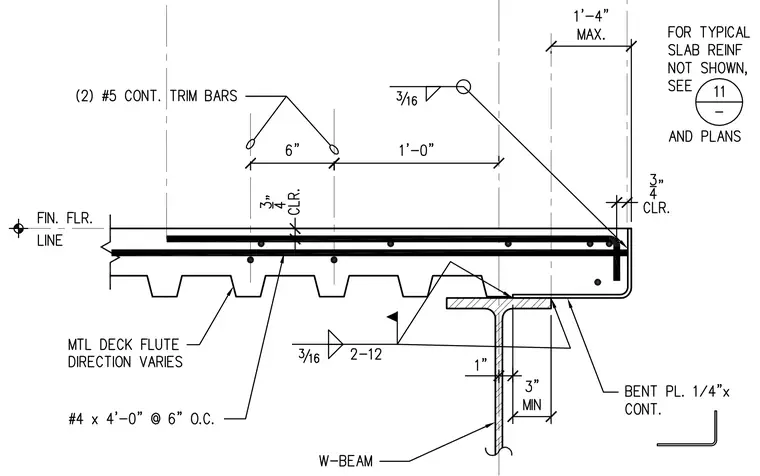

A concrete slab poured over a metal deck bears onto a W-beam with a continuous 1/4-inch bent plate. The assembly includes two #5 continuous trim bars, #4 reinforcing bars spaced at 6 inches on center, and a 3/4-inch clearance. A 3/16-inch fillet weld secures the bent plate connection. Metal deck flute direction varies.
