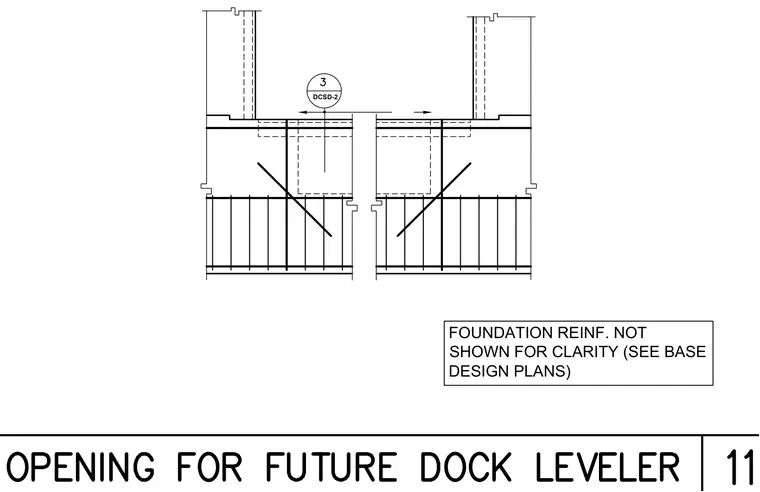

Foundation reinforcement is omitted for clarity with reference made to the base design plans. The concrete foundation walls frame an opening designed to receive a future dock leveler.
DCSD-2 FOUNDATION REINF. NOT SHOWN FOR CLARITY (SEE BASE DESIGN PLANS)
