A ceiling grid tee bears on a wall angle attached directly to the wall construction. Twelve-gauge hanger wires support the grid, installed either vertically or sloped at a maximum of one in six. The ceiling grid tees attach securely to the wall angle.

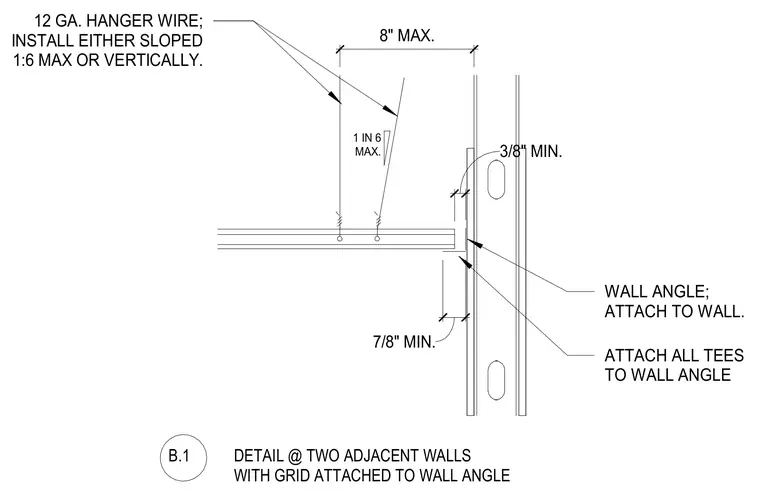

B.1 DETAIL @ TWO ADJACENT WALLS WITH GRID ATTACHED TO WALL ANGLE 8" MAX. 7/8" MIN. 3/8" MIN. 12 GA. HANGER WIRE; INSTALL EITHER SLOPED 1:6 MAX OR VERTICALLY. WALL ANGLE; ATTACH TO WALL. 1 IN 6 MAX. ATTACH ALL TEES TO WALL ANGLE
