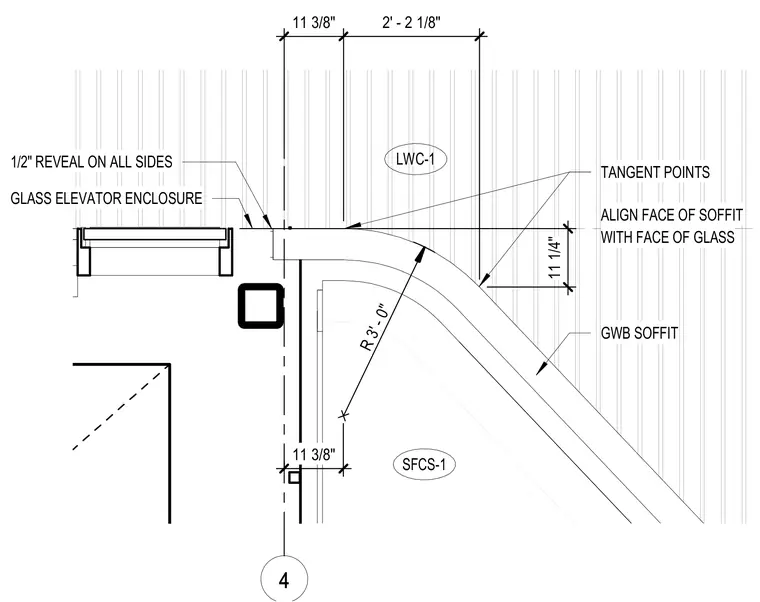

A curved gypsum board soffit aligns with the face of an adjacent glass elevator enclosure. The assembly incorporates a three-foot radius curve between tangent points, with a one-half-inch reveal on all sides. Dimensions govern the alignment of the soffit face relative to the glass enclosure.
4 1 1 3 / 8 " 2 ' - 2 1 / 8 " R 3 ' - 0 " 1 1 1 / 4 " 1 1 3 / 8 " LWC-1 SFCS-1 T A N G E N T P O I N T S G W B S O F F I T A L I G N F A C E O F S O F F I T W I T H F A C E O F G L A S S 1 / 2 " R E V E A L O N A L L S I D E S G L A S S E L E V A T O R E N C L O S U R E
