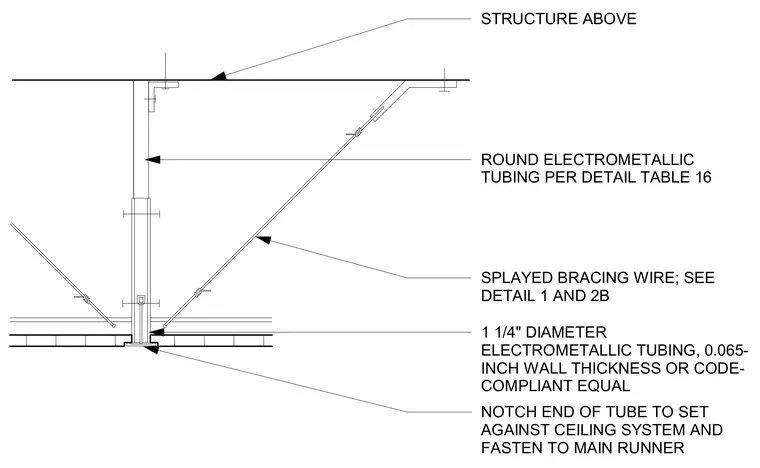

This interior detail shows a 1 1/4-inch diameter electrical metallic tubing compression strut spanning between the suspended ceiling system and the structure above. The tube ends are notched to set against the ceiling framing and fasten to the main runner structure. Splayed bracing wires are anchored diagonally to provide lateral seismic restraint for the ceiling system.
ROUND ELECTROMETALLIC TUBING PER DETAIL TABLE 16 SPLAYED BRACING WIRE; SEE DETAIL 1 AND 2B 1 1/4" DIAMETER ELECTROMETALLIC TUBING, 0.065- INCH WALL THICKNESS OR CODE- COMPLIANT EQUAL NOTCH END OF TUBE TO SET AGAINST CEILING SYSTEM AND FASTEN TO MAIN RUNNER STRUCTURE ABOVE
