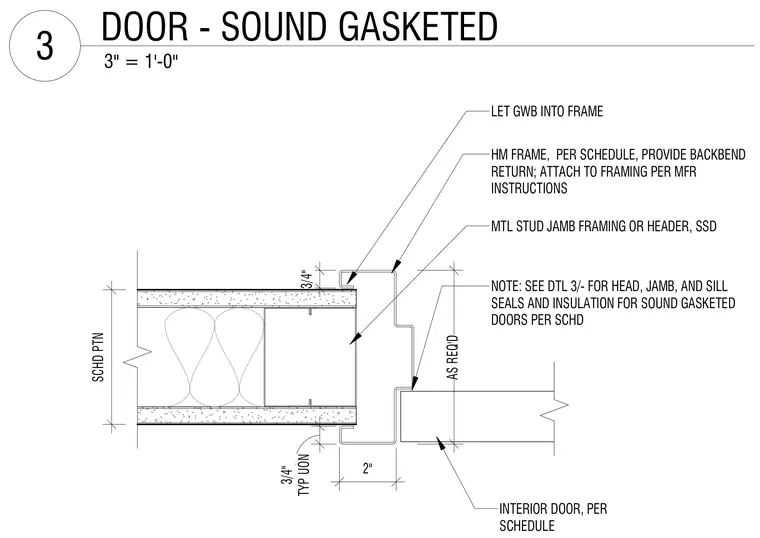

A hollow metal frame is anchored to metal stud framing and header partitions, featuring a backbend return and a sound seal. Gypsum wallboard is let into the frame to maintain acoustic performance. An interior door per schedule meets the frame with perimeter gaskets.
SCHD PTN MTL STUD JAMB FRAMING OR HEADER, SSD LET GWB INTO FRAME HM FRAME, PER SCHEDULE, PROVIDE BACKBEND RETURN; ATTACH TO FRAMING PER MFR INSTRUCTIONS INTERIOR DOOR, PER SCHEDULE AS REQ'D NOTE: SEE DTL 3/- FOR HEAD, JAMB, AND SILL SEALS AND INSULATION FOR SOUND GASKETED DOORS PER SCHD 3/4" 2" TYP UON 3/4" 3" = 1'-0" 3 DOOR - SOUND GASKETED
