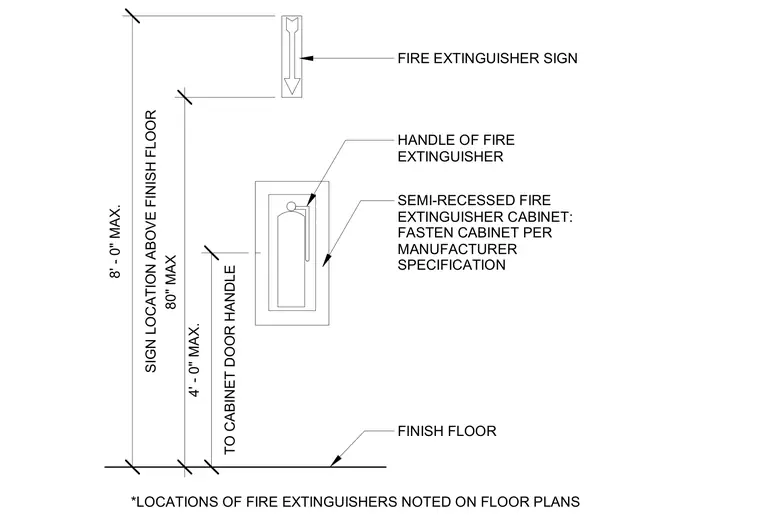

A semi-recessed fire extinguisher cabinet is fastened per manufacturer specifications with the cabinet door handle positioned at a maximum height of 4 feet 0 inches above the finish floor. A fire extinguisher sign is mounted above the cabinet at a maximum height of 8 feet 0 inches above the finish floor.
TO CABINET DOOR HANDLE 4' - 0" MAX. SIGN LOCATION ABOVE FINISH FLOOR 8' - 0" MAX. FIRE EXTINGUISHER SIGN HANDLE OF FIRE EXTINGUISHER SEMI-RECESSED FIRE EXTINGUISHER CABINET: FASTEN CABINET PER MANUFACTURER SPECIFICATION FINISH FLOOR *LOCATIONS OF FIRE EXTINGUISHERS NOTED ON FLOOR PLANS 80" MAX
