Fire Rated Aluminum Frame Door Jamb

Materials

Elements

About this detail

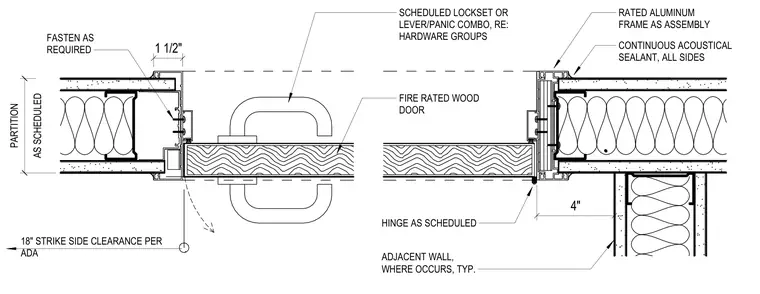

A fire rated wood door is hung within a rated aluminum frame assembly fastened to scheduled framed partitions. Continuous acoustical sealant is applied to all sides of the frame. Hardware includes scheduled hinges, locksets or lever/panic combos, and maintains an eighteen-inch strike side clearance per ADA requirements. Adjacent walls interface with the assembly as scheduled.
