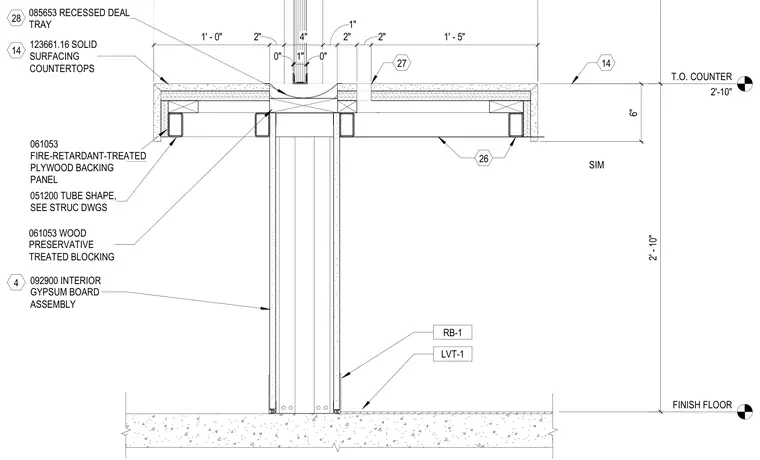

This interior wall and counter section details a security window installation with a recessed deal tray mounted over a structural tube shape and wood blocking support. The counter surface consists of solid surfacing with fire-retardant-treated plywood backing panels and wood preservative-treated blocking framed by structural steel tube shapes. The vertical partition uses an interior gypsum board assembly finished with base and flooring materials extending from the finished floor to the top of the counter at two feet ten inches.
092900 INTERIOR GYPSUM BOARD ASSEMBLY FINISH FLOOR T.O. COUNTER 2'-10" 2' - 10" 4 RB-1 LVT-1 051200 TUBE SHAPE, SEE STRUC DWGS 061053 WOOD PRESERVATIVE TREATED BLOCKING 123661.16 SOLID SURFACING COUNTERTOPS 061053 FIRE-RETARDANT-TREATED PLYWOOD BACKING PANEL 085653 RECESSED DEAL TRAY 1' - 0" 2" 4" 1" 2" 2" 1' - 5" 0" 1" 0" 26 14 14 27 28 6" SIM
