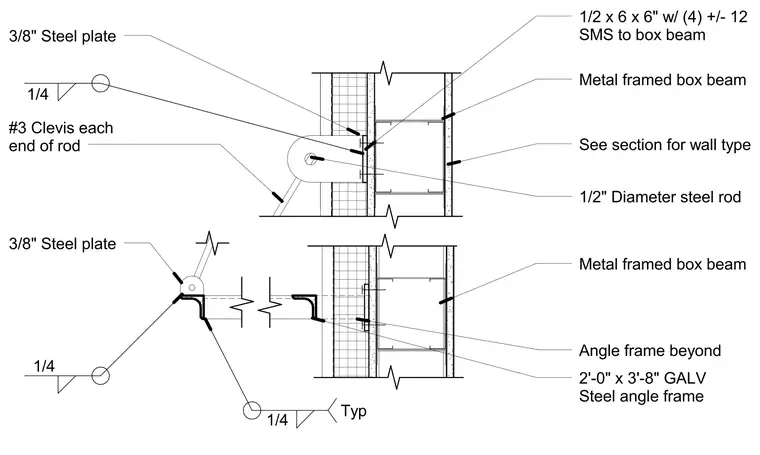

An equipment platform is suspended from a metal framed box beam using a one-half inch diameter steel rod equipped with number three clevis fittings at each end. The suspension rod connects to a three-eighths inch steel plate welded with a one-quarter inch fillet weld, secured to the box beam via a one-half by six by six inch plate with four sheet metal screws. An angle frame extends beyond the assembly, supported by a galvanized steel angle frame measuring two feet by three feet eight inches. Wall construction types are referenced to separate sections, and all structural steel connections are detailed with standard welding symbols.
Metal framed box beam 1/2" Diameter steel rod 2'-0" x 3'-8" GALV Steel angle frame Metal framed box beam See section for wall type 3/8" Steel plate Angle frame beyond 1/4 1/4 Typ 1/4 3/8" Steel plate #3 Clevis each end of rod 1/2 x 6 x 6" w/ (4) +/- 12 SMS to box beam
