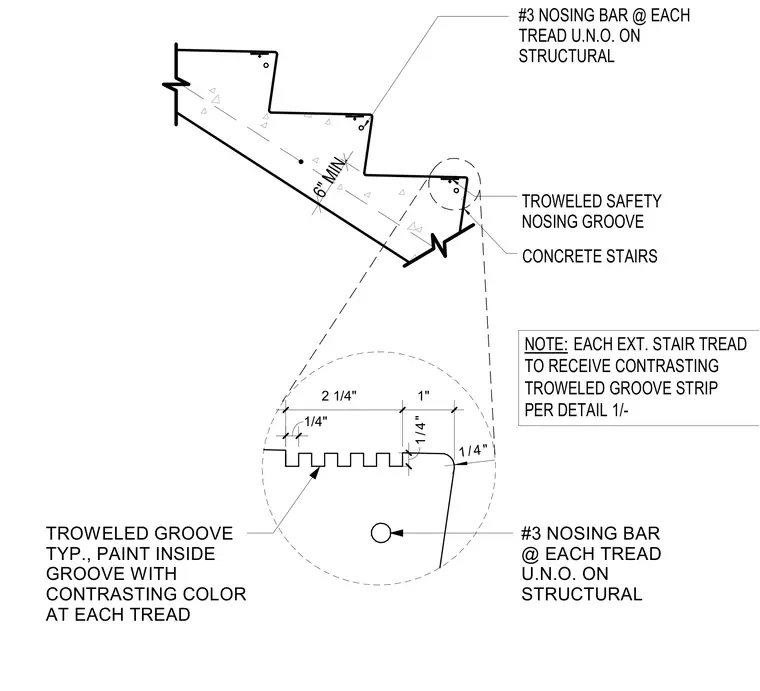

This architectural detail shows the nosing configuration for structural concrete stairs, reinforced with a number three reinforcing bar placed at each tread unless otherwise noted with a six inch minimum dimension. The leading edge incorporates a troweled safety nosing groove with a series of one-quarter inch by one-quarter inch grooves spaced across a two-and-one-quarter inch zone. Each exterior stair tread receives a contrasting troweled groove strip, and the inside of the groove is painted with a contrasting color.
6" MIN. #3 NOSING BAR @ EACH TREAD U.N.O. ON STRUCTURAL CONCRETE STAIRS TROWELED SAFETY NOSING GROOVE NOTE: EACH EXT. STAIR TREAD TO RECEIVE CONTRASTING TROWELED GROOVE STRIP PER DETAIL 1/- 2 1/4" 1" 1/4" 1/4" 1/ 4" #3 NOSING BAR @ EACH TREAD U.N.O. ON STRUCTURAL TROWELED GROOVE TYP., PAINT INSIDE GROOVE WITH CONTRASTING COLOR AT EACH TREAD
