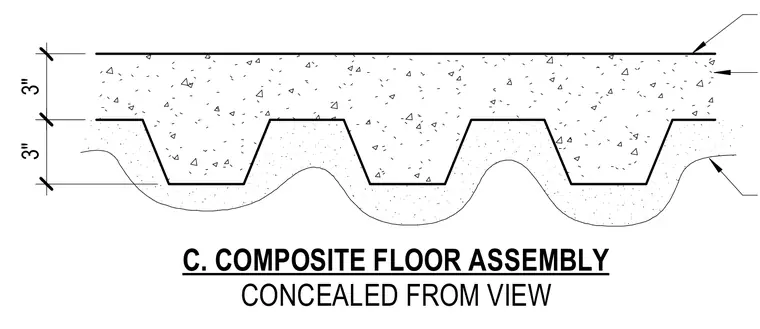

A three-inch concrete topping is placed over a profiled metal deck, supported by a three-inch lower concrete profile, creating a composite floor assembly. The total assembly thickness is dimensioned with two distinct three-inch height tiers for the concrete placement. The metal deck profile keys into the concrete to establish composite action.
3" 3" C. COMPOSITE FLOOR ASSEMBLY CONCEALED FROM VIEW
