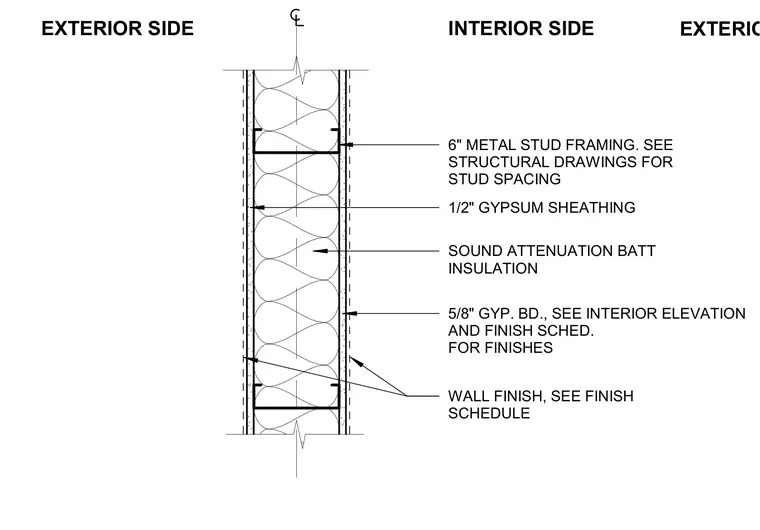

Six-inch cold-formed metal stud framing provides the structural support for the partition, with stud spacing determined by structural drawings. Sound attenuation batt insulation fills the stud cavity for acoustic control. One-half-inch gypsum sheathing is installed on the exterior side of the framing. Five-eighths-inch gypsum board is applied to the interior face, receiving wall finishes specified in the finish schedule.
EXTERIOR SIDE INTERIOR SIDE 6" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION EXTERIOR SIDE 5/8" GYP. BD., SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 1/2" GYPSUM SHEATHING WALL FINISH, SEE FINISH SCHEDULE
