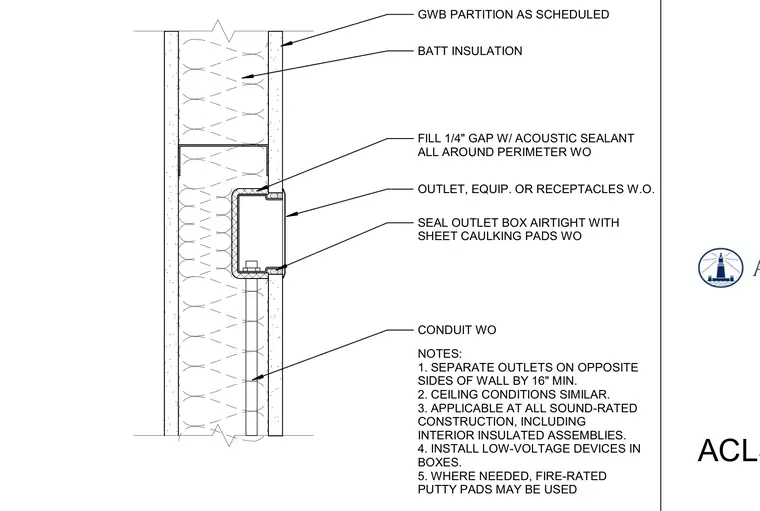

An electrical outlet box or junction box is set into a gypsum wallboard partition lined with batt insulation. The outlet box is sealed airtight using sheet caulking pads, and a one-quarter inch gap around the perimeter is filled with acoustic sealant. A conduit runs down into the box from within the wall cavity. Separate outlets on opposite sides of the wall by sixteen inches minimum, and apply fire-rated putty pads where needed.
GWB PARTITION AS SCHEDULED BATT INSULATION OUTLET, EQUIP. OR RECEPTACLES W.O. SEAL OUTLET BOX AIRTIGHT WITH SHEET CAULKING PADS WO FILL 1/4" GAP W/ ACOUSTIC SEALANT ALL AROUND PERIMETER WO NOTES: 1. SEPARATE OUTLETS ON OPPOSITE SIDES OF WALL BY 16" MIN. 2. CEILING CONDITIONS SIMILAR. 3. APPLICABLE AT ALL SOUND-RATED CONSTRUCTION, INCLUDING INTERIOR INSULATED ASSEMBLIES. 4. INSTALL LOW-VOLTAGE DEVICES IN BOXES. 5. WHERE NEEDED, FIRE-RATED PUTTY PADS MAY BE USED CONDUIT WO ACLS-MILLBRAE
