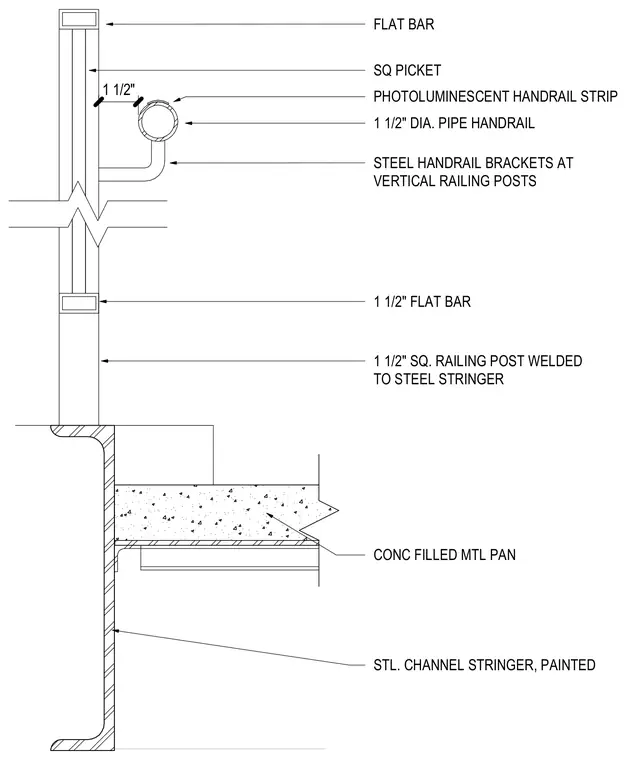

A 1 1/2-inch square steel railing post is welded directly to a painted steel channel stringer supporting concrete-filled metal pan treads. A 1 1/2-inch diameter pipe handrail is attached to the vertical railing post using steel handrail brackets. The assembly includes a photoluminescent handrail strip mounted on the pipe handrail, square pickets, and horizontal 1 1/2-inch flat bars integrated into the guardrail frame.
CONC FILLED MTL PAN FLAT BAR SQ PICKET 1 1/2" DIA. PIPE HANDRAIL 1 1/2" STEEL HANDRAIL BRACKETS AT VERTICAL RAILING POSTS 1 1/2" SQ. RAILING POST WELDED TO STEEL STRINGER PHOTOLUMINESCENT HANDRAIL STRIP 1 1/2" FLAT BAR STL. CHANNEL STRINGER, PAINTED
