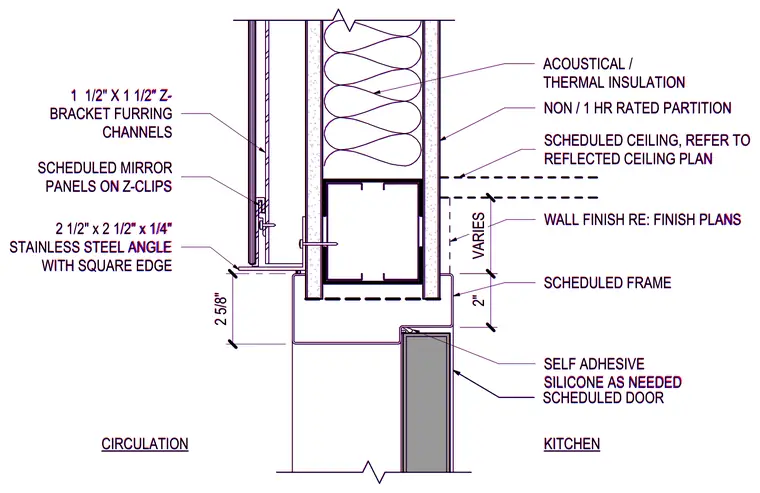

This wall detail shows mirror panels mounted on one and one-half inch by one and one-half inch Z-bracket furring channels, resting on a two and one-half inch by two and one-half inch by one-quarter inch stainless steel angle with a square edge. The assembly interfaces with a non-rated or one-hour rated partition containing acoustical and thermal insulation. A scheduled door frame is positioned below with a variable height transition, utilizing self-adhesive silicone as needed at the door junction. Wall finishes and scheduled ceilings are coordinated per finish and reflected ceiling plans.
NON / 1 HR RATED PARTITION SCHEDULED FRAME ACOUSTICAL / THERMAL INSULATION SCHEDULED DOOR SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN WALL FINISH RE: FINISH PLANS SELF ADHESIVE SILICONE AS NEEDED 2 5/8" 2" VARIES KITCHEN CIRCULATION 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1 1/2" X 1 1/2" Z- BRACKET FURRING CHANNELS SCHEDULED MIRROR PANELS ON Z-CLIPS NON / 1 HR RATED PARTITION SCHEDULED FRAME ACOUSTICAL / THERMAL INSULATION SCHEDULED DOOR SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN WALL FINISH RE: FINISH PLANS SELF ADHESIVE SILICONE AS NEEDED 2 5/8" 2" VARIES KITCHEN CIRCULATION 2 1/2" x 2 1/2" x 1/4" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1 1/2" X 1 1/2" Z- BRACKET FURRING CHANNELS SCHEDULED MIRROR PANELS ON Z-CLIPS
