Architectural · A-HF5RQ

Upper and Lower Cabinet Millwork Section

Materials

Elements

Doors Floors / Slabs Millwork / Casework

About this detail

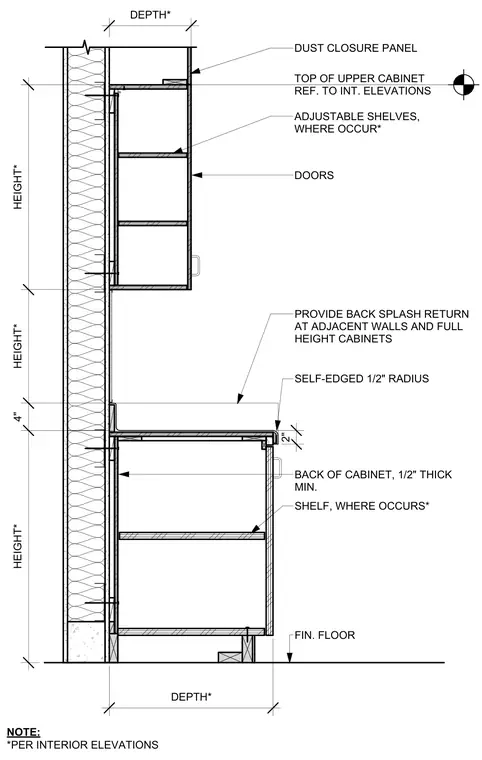

Upper and lower cabinetry are anchored to a framed wall with batt insulation, featuring adjustable shelves in both units and a dust closure panel above the upper cabinet. The lower cabinet features a self-edged countertop with a one-half inch radius profile, a four-inch backsplash return at adjacent walls, and a one-half inch thick minimum cabinet back. Depths and heights are referenced per interior elevations, with the lower cabinet supported off the finished floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
