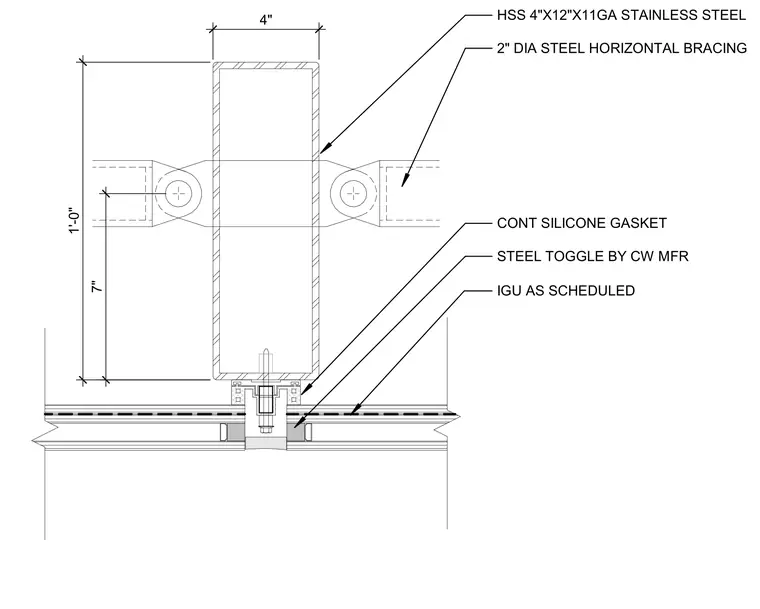

A 4x12 stainless steel hollow structural section with 11-gauge thickness serves as the vertical mullion for the curtain wall system. Two-inch diameter steel horizontal bracing connects to the mullion. Insulated glazing units, provided as scheduled, are secured with a continuous silicone gasket and a steel toggle supplied by the curtain wall manufacturer.
2" DIA STEEL HORIZONTAL BRACING 4" 1'-0" 7" HSS 4"X12"X11GA STAINLESS STEEL IGU AS SCHEDULED CONT SILICONE GASKET STEEL TOGGLE BY CW MFR
