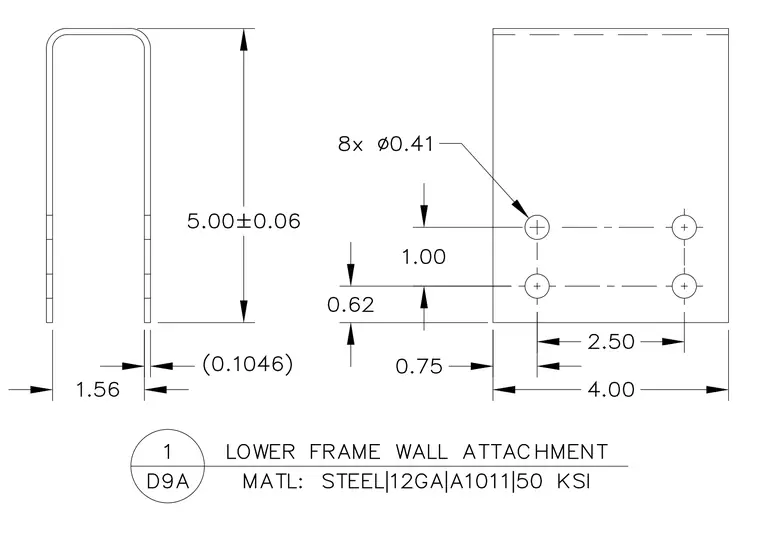

This twelve gauge steel bracket is fabricated from ASTM A1011 Grade fifty steel with a material thickness of zero point one zero four six inches. The component measures five inches in overall height, four inches in width, and one point five six inches in depth. Eight diameter zero point four one inch holes are punched through the flanges with detailed edge and spacing dimensions provided.
4.00 2.50 (0.1046) 5.00±0.06 1.00 1.56 0.62 0.75 8x ∅0.41 LOWER FRAME WALL ATTACHMENT 1 D9A MATL: STEEL|12GA|A1011|50 KSI 9 —
