High and low forward reach limits are established at forty-eight inches and fifteen inches above the finished floor. These dimensions govern the allowable mounting heights for operable parts, controls, and accessories in accessible spaces.

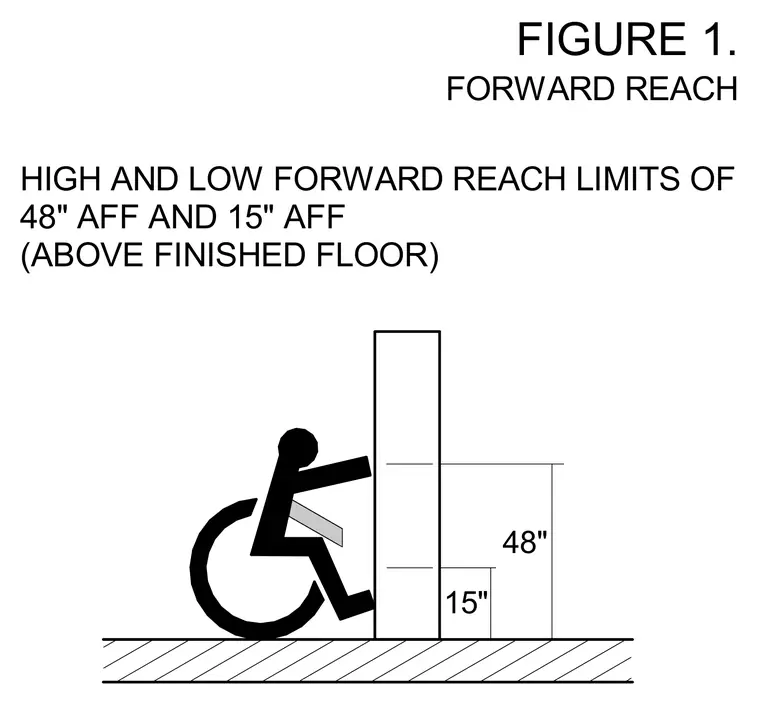

48" 15" HIGH AND LOW FORWARD REACH LIMITS OF 48" AFF AND 15" AFF (ABOVE FINISHED FLOOR) FIGURE 1. FORWARD REACH
