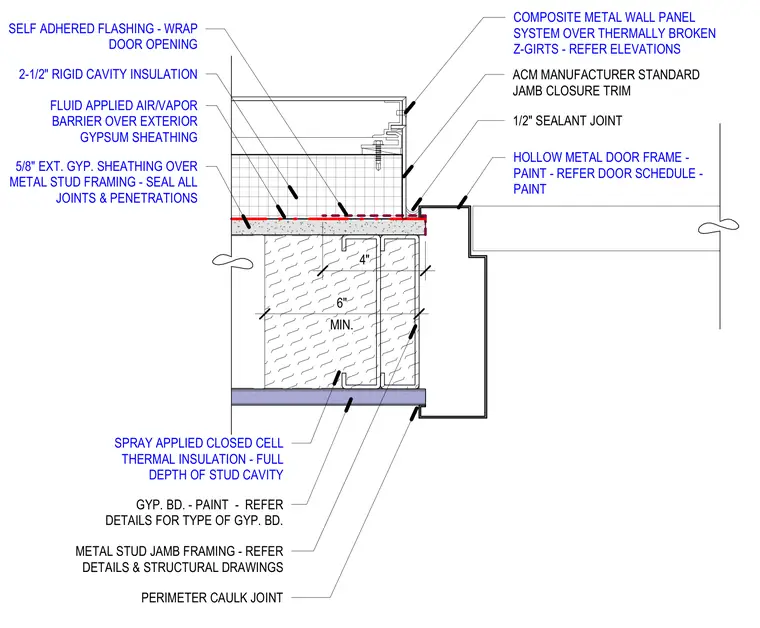

This horizontal section details a hollow metal door frame intersecting an exterior metal stud wall clad in composite metal panels. The cold-formed steel framing is backed by five-eighths inch exterior gypsum sheathing, a fluid-applied air and vapor barrier, two and a half inches of rigid cavity insulation, and thermally broken z-girts supporting the aluminum composite material wall panel system. The stud cavity is filled with four to six inches minimum of spray-applied closed cell thermal insulation, and the interior is finished with gypsum board. Self-adhered flashing wraps the door opening beneath the exterior layers. A perimeter caulk joint and a one-half inch sealant joint seal the junction between the metal frame and the closure trim.
HOLLOW METAL DOOR FRAME - PAINT - REFER DOOR SCHEDULE - PAINT 1/2" SEALANT JOINT METAL STUD JAMB FRAMING - REFER DETAILS & STRUCTURAL DRAWINGS GYP. BD. - PAINT - REFER DETAILS FOR TYPE OF GYP. BD. PERIMETER CAULK JOINT ACM MANUFACTURER STANDARD JAMB CLOSURE TRIM 4" MIN. 6" SPRAY APPLIED CLOSED CELL THERMAL INSULATION - FULL DEPTH OF STUD CAVITY 5/8" EXT. GYP. SHEATHING OVER METAL STUD FRAMING - SEAL ALL JOINTS & PENETRATIONS FLUID APPLIED AIR/VAPOR BARRIER OVER EXTERIOR GYPSUM SHEATHING 2-1/2" RIGID CAVITY INSULATION SELF ADHERED FLASHING - WRAP DOOR OPENING COMPOSITE METAL WALL PANEL SYSTEM OVER THERMALLY BROKEN Z-GIRTS - REFER ELEVATIONS
