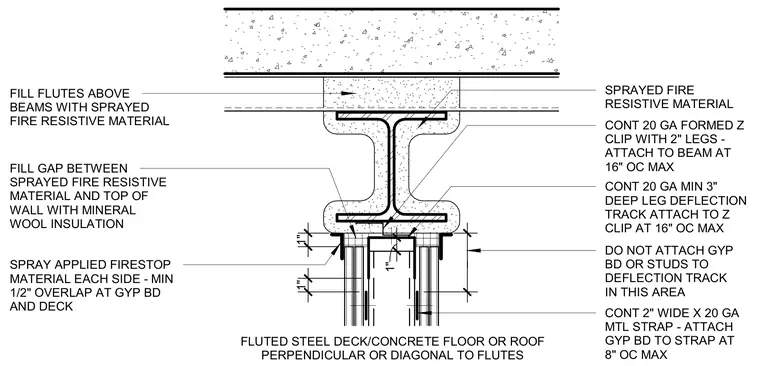

This head-of-wall detail shows a two-hour fire-resistant partition intersecting a structural steel beam supporting a fluted steel deck and concrete floor or roof. A continuous twenty-gauge formed Z-clip with two-inch legs attaches directly to the bottom flange of the beam at a maximum spacing of sixteen inches on center. A continuous twenty-gauge minimum three-inch deep-leg deflection track fastens to the Z-clip at sixteen inches on center maximum, allowing independent vertical movement while keeping studs and gypsum board left unattached to the deflection track in the specified movement area. Continuous two-inch wide by twenty-gauge metal straps secure the gypsum board to the framing at eight inches on center maximum. Mineral wool insulation fills the gap between the sprayed fire-resistive material and the top of the wall. Sprayed fire-resistive material coats the steel beam, fills the flutes directly above the beam, and applies to each side of the wall assembly with a minimum one-half-inch overlap at the gypsum board and deck.
1" CONT 2" WIDE X 20 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 20 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO Z CLIP AT 16" OC MAX CONT 20 GA FORMED Z CLIP WITH 2" LEGS - ATTACH TO BEAM AT 16" OC MAX FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK FILL GAP BETWEEN SPRAYED FIRE RESISTIVE MATERIAL AND TOP OF WALL WITH MINERAL WOOL INSULATION FILL FLUTES ABOVE BEAMS WITH SPRAYED FIRE RESISTIVE MATERIAL SPRAYED FIRE RESISTIVE MATERIAL _ 1" 1"
