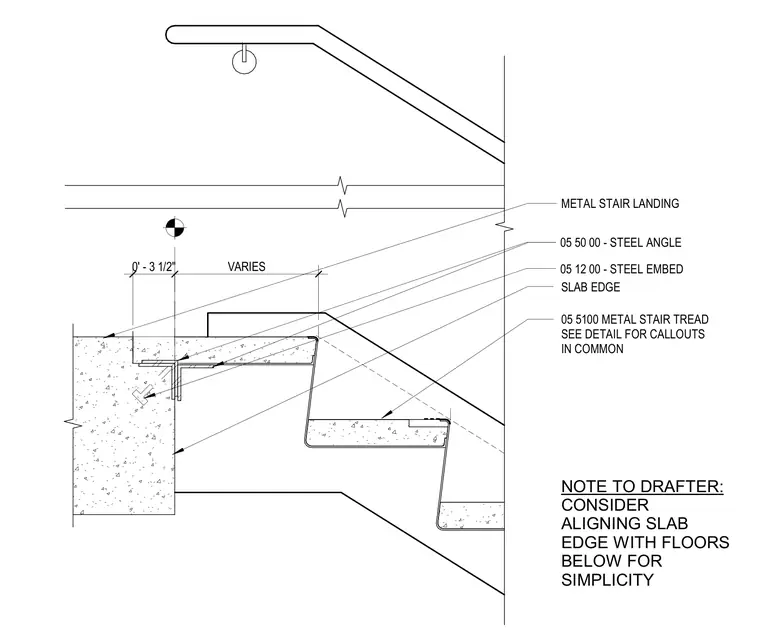

A structural steel angle attaches to a steel embed plate cast into the concrete slab edge to support the top metal stair landing. Metal stair treads and landings connect to the angle assembly with dimensions varying up to 3 and 1/2 inches from the slab edge. A handrail mounts adjacent to the stair run above the landing.
METAL STAIR LANDING 05 5100 METAL STAIR TREAD SEE DETAIL FOR CALLOUTS IN COMMON NOTE TO DRAFTER: CONSIDER ALIGNING SLAB EDGE WITH FLOORS BELOW FOR SIMPLICITY 0' - 3 1/2" VARIES 05 50 00 - STEEL ANGLE 05 12 00 - STEEL EMBED SLAB EDGE 05 50 00 - STEEL ANGLE
