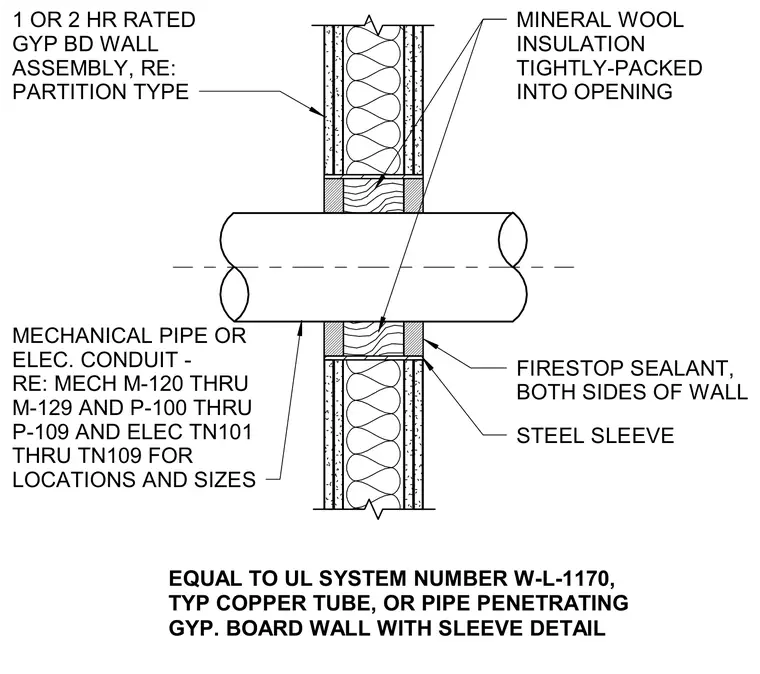

A mechanical pipe or electrical conduit penetrates a one or two-hour rated gypsum board wall assembly through a steel sleeve. Tightly-packed mineral wool insulation fills the opening around the penetration. Firestop sealant is applied to both sides of the wall at the sleeve perimeter. The assembly complies with Underwriters Laboratories system number W-L-1170 for copper tube or pipe penetrations.
STEEL SLEEVE MECHANICAL PIPE OR ELEC. CONDUIT - RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 AND ELEC TN101 THRU TN109 FOR LOCATIONS AND SIZES EQUAL TO UL SYSTEM NUMBER W-L-1170, TYP COPPER TUBE, OR PIPE PENETRATING GYP. BOARD WALL WITH SLEEVE DETAIL MINERAL WOOL INSULATION TIGHTLY-PACKED INTO OPENING 1 OR 2 HR RATED GYP BD WALL ASSEMBLY, RE: PARTITION TYPE FIRESTOP SEALANT, BOTH SIDES OF WALL
