An existing exit stair is removed in its entirety and replaced with a new floor assembly matching the existing adjacent floor system. Associated electrical panels are relocated as required by the infill construction. The framing and floor finish tie directly into the surrounding structural grid.

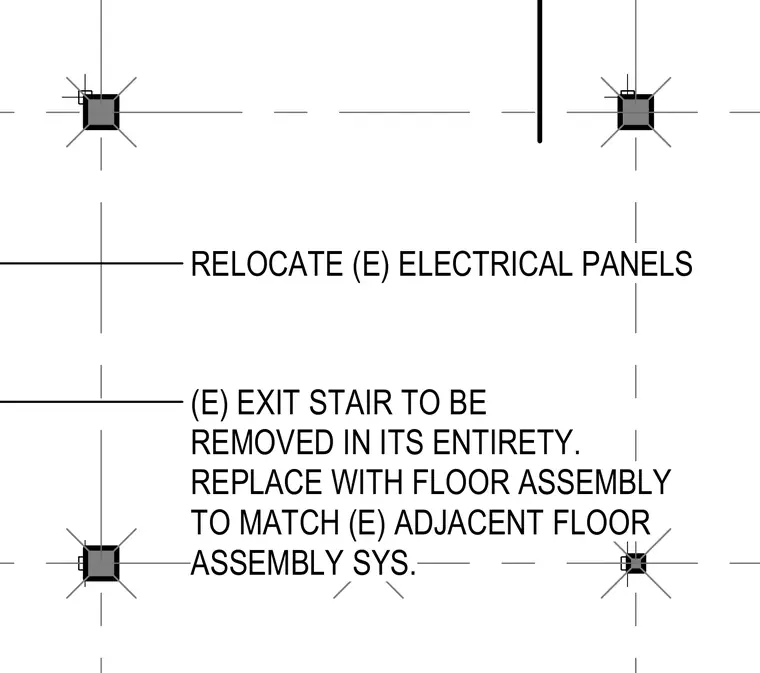

(E) EXIT STAIR TO BE REMOVED IN ITS ENTIRETY. REPLACE WITH FLOOR ASSEMBLY TO MATCH (E) ADJACENT FLOOR ASSEMBLY SYS. RELOCATE (E) ELECTRICAL PANELS
