Cold-formed metal stud partitions receive continuous steel backing plates or track channels for equipment mounting spanning a minimum of two bays. Type A uses a flat steel plate secured to the studs with two number ten by one-half inch sheet metal screws per stud. Type B uses a six-inch by one and one-quarter inch track channel notched and fastened to the studs with three number ten by one-half inch sheet metal screws per stud. Stud flanges remain uncut in both configurations.

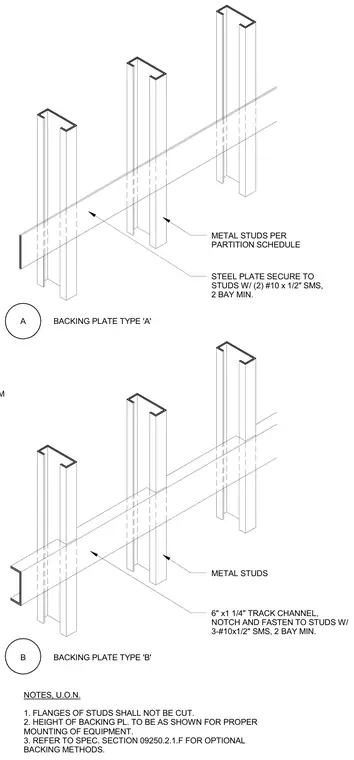

BOTTOM METAL STUDS PER PARTITION SCHEDULE STEEL PLATE SECURE TO STUDS W/ (2) #10 x 1/2" SMS, 2 BAY MIN. METAL STUDS 6" x1 1/4" TRACK CHANNEL, NOTCH AND FASTEN TO STUDS W/ 3-#10x1/2" SMS, 2 BAY MIN. A BACKING PLATE TYPE 'A' B BACKING PLATE TYPE 'B' NOTES, U.O.N. 1. FLANGES OF STUDS SHALL NOT BE CUT. 2. HEIGHT OF BACKING PL. TO BE AS SHOWN FOR PROPER MOUNTING OF EQUIPMENT. 3. REFER TO SPEC. SECTION 09250.2.1.F FOR OPTIONAL BACKING METHODS.
