Architectural · A-HD9M6

Parapet Detail at Front and Back Roof Deck

Materials

Concrete Reinforced Concrete Timber / Wood Metal (misc.)

Elements

Roofs Parapets Decks Waterproofing / Flashing Insulation Anchors / Embeds Reinforcing

Connections

Embed Plate

About this detail

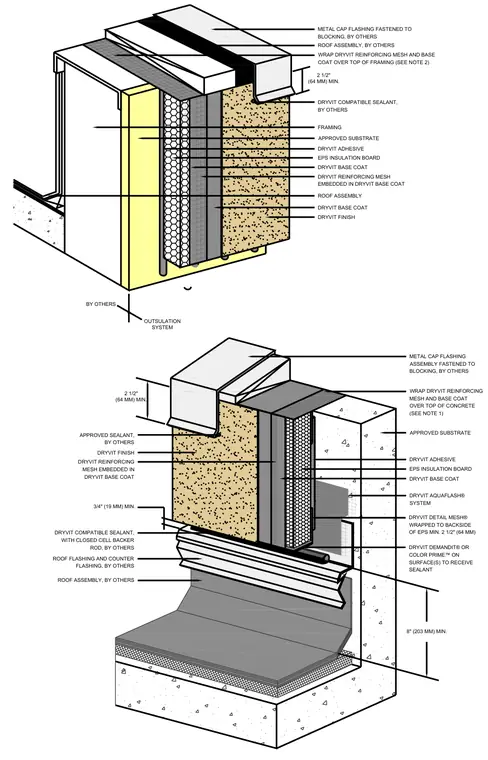

An exterior insulation and finish system parapet wall assembly meets a roof deck at both the front and back conditions. The assembly consists of an approved substrate, expanded polystyrene insulation board adhered with Dryvit adhesive, and a base coat with embedded reinforcing mesh wrapped over the top of the framing or concrete. A metal cap flashing assembly is fastened to blocking above, while a Dryvit compatible sealant with a closed-cell backer rod interfaces with the separate roof flashing and counter flashing. Additional protective elements include Dryvit Aquaflash system detailing and surface preparation with Demandit or Color Prime where sealants are applied.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
