Suspended ceiling and compression strut attachments anchor to a structural concrete-fill metal deck using approved shot-in anchors or red-head eye bolts with load tests required. Wire pigtails feature a two-inch diameter loop and four-inch tail for deck attachment, while self-tapping screws are restricted to use prior to concrete pouring. Tube struts fasten to a one-and-a-half by one-and-a-half inch by thirteen-gauge by three-inch angle attached to the deck with approved shot pins, using slotted ends secured with number ten by two-inch sheet metal screws. Metal stud flanges are cut, bent ninety degrees, and attached directly to the overhead structure with approved shot-in anchors.

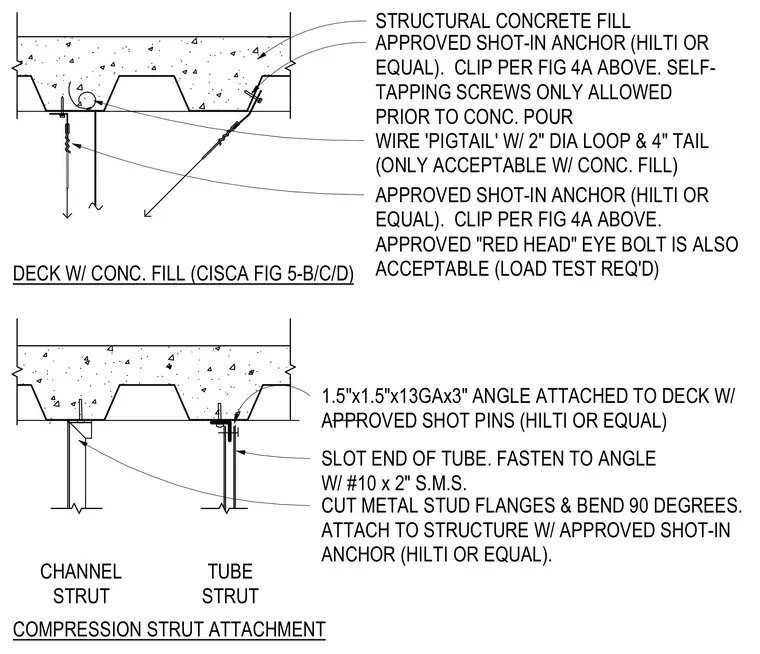

APPROVED SHOT-IN ANCHOR (HILTI OR EQUAL). CLIP PER FIG 4A ABOVE. SELF- TAPPING SCREWS ONLY ALLOWED PRIOR TO CONC. POUR STRUCTURAL CONCRETE FILL DECK W/ CONC. FILL (CISCA FIG 5-B/C/D) WIRE 'PIGTAIL' W/ 2" DIA LOOP & 4" TAIL (ONLY ACCEPTABLE W/ CONC. FILL) APPROVED SHOT-IN ANCHOR (HILTI OR EQUAL). CLIP PER FIG 4A ABOVE. APPROVED "RED HEAD" EYE BOLT IS ALSO ACCEPTABLE (LOAD TEST REQ'D) 1.5"x1.5"x13GAx3" ANGLE ATTACHED TO DECK W/ APPROVED SHOT PINS (HILTI OR EQUAL) SLOT END OF TUBE. FASTEN TO ANGLE W/ #10 x 2" S.M.S. CUT METAL STUD FLANGES & BEND 90 DEGREES. ATTACH TO STRUCTURE W/ APPROVED SHOT-IN ANCHOR (HILTI OR EQUAL). CHANNEL STRUT TUBE STRUT COMPRESSION STRUT ATTACHMENT
