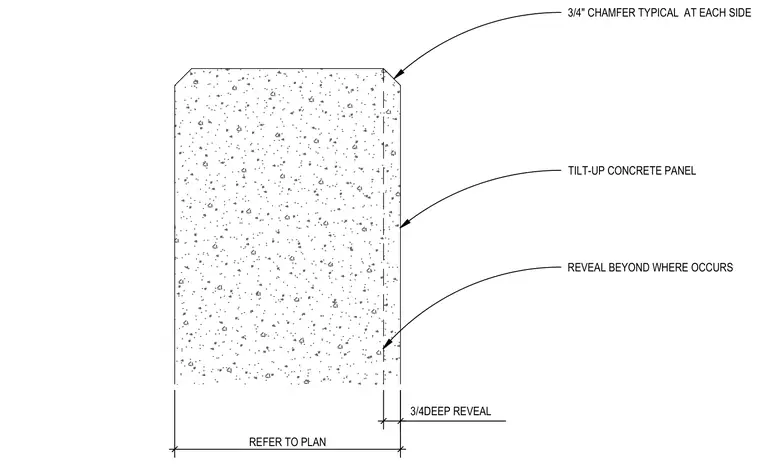

A tilt-up concrete wall panel features a three-quarter inch chamfer at each side typical. A three-quarter inch deep reveal is located as dimensioned and indicated by plan references.
3/4" CHAMFER TYPICAL AT EACH SIDE TILT-UP CONCRETE PANEL REFER TO PLAN 3/4DEEP REVEAL REVEAL BEYOND WHERE OCCURS
