Stair Handrail Support Bracket at Partition Wall

Materials

Elements

Walls Partitions Stairs Railings / Guards Connections / Plates

About this detail

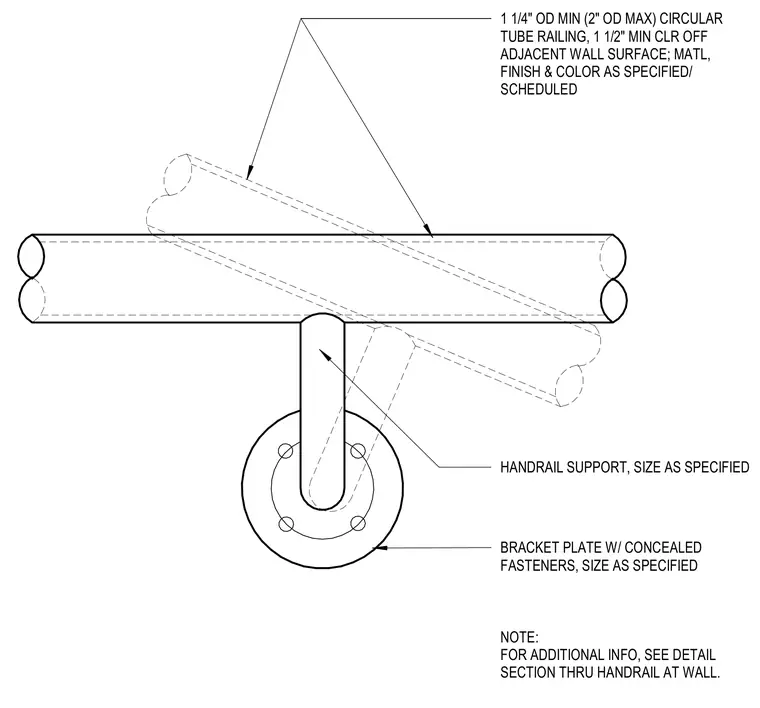

A circular tube railing ranging from one and one-quarter inches to two inches in outside diameter mounts to an adjacent wall surface with a minimum clearance of one and one-half inches. The railing connects to a handrail support bracket of specified size, which secures to a round bracket plate featuring concealed fasteners. Material, finish, and color are provided per schedule. Additional information refers to the detail section through the handrail at the wall.
