Stone Veneer Wall Top at Concrete Deck

Materials

Concrete Steel Timber / Wood Masonry / CMU Stone Metal (misc.)Gypsum / Drywall

Elements

Walls Facades / Cladding Decks Insulation

About this detail

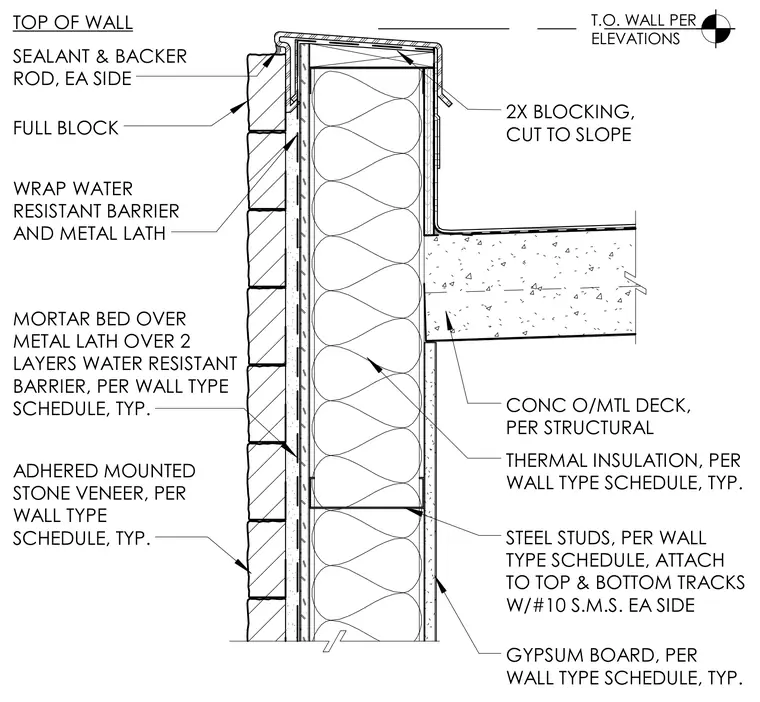

Steel studs are spaced per the wall type schedule and attached to top and bottom tracks with number ten sheet metal screws on each side. A concrete slab over metal deck bears against the assembly, with thermal insulation placed within the stud cavity. The exterior features adhered mounted stone veneer set in a mortar bed over metal lath and two layers of water-resistant barrier. At the top of the wall, sloped two-by wood blocking wraps with water-resistant barrier and metal lath beneath a coping cap, sealed with joint sealant and backer rod on each side against full block.
