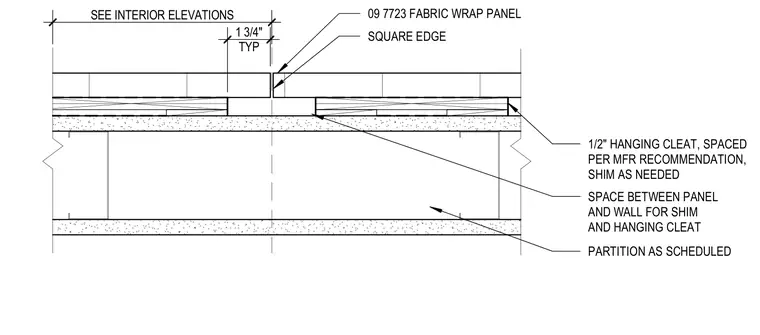

Acoustic fabric wrapped panels with square edges meet at a vertical joint, hung on half-inch hanging cleats spaced per manufacturer recommendations with shims as needed. A designated space is provided between the panel and the wall for shims and hanging cleats. The assembly attaches to the partition as scheduled.
09 7723 FABRIC WRAP PANEL SQUARE EDGE PARTITION AS SCHEDULED SEE INTERIOR ELEVATIONS TYP 1 3/4" 1/2" HANGING CLEAT, SPACED PER MFR RECOMMENDATION, SHIM AS NEEDED SPACE BETWEEN PANEL AND WALL FOR SHIM AND HANGING CLEAT
