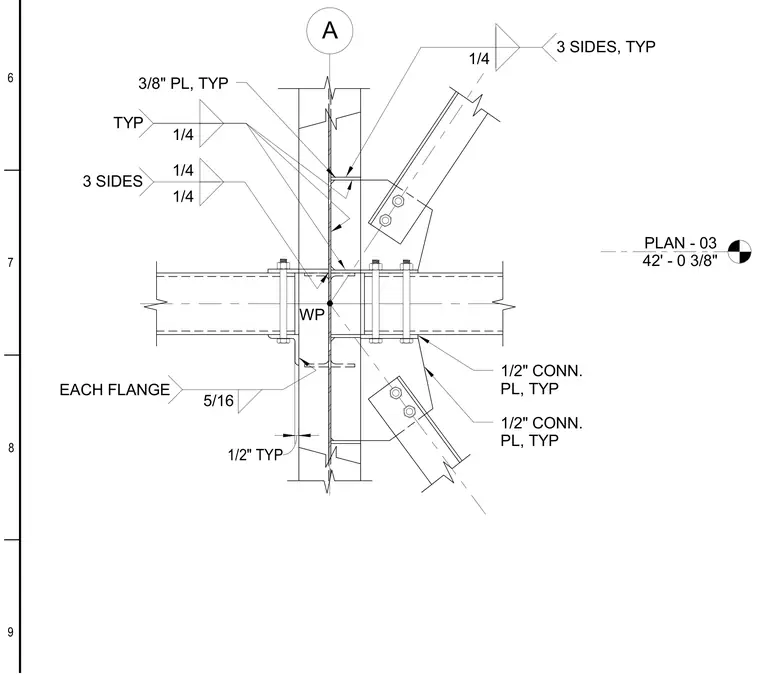

A steel framing connection has diagonal braces framing into a column and beam intersection. One-half inch connection plates and three-eighths inch plates are welded with quarter-inch fillet welds on three sides typically. A five-sixteenth inch fillet weld is specified at each flange connection. The assembly centers on a structural work point with gridded alignment markers.
PLAN - 03 42' - 0 3/8" A 5/16 EACH FLANGE 1/4 1/4 3 SIDES 1/2" TYP 1/4 3 SIDES, TYP 3/8" PL, TYP 1/4 TYP 1/2" CONN. PL, TYP 1/2" CONN. PL, TYP WP 9 8 7 6
