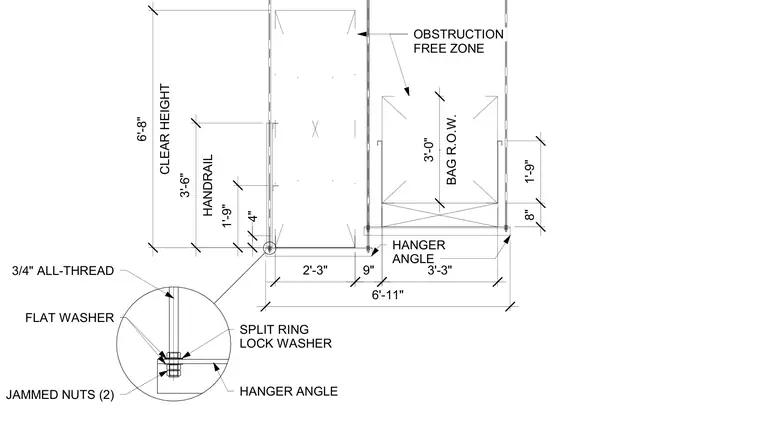

A conveyor and catwalk assembly is supported by hanger angles and three-quarter-inch all-thread rods. The connection utilizes flat washers, split ring lock washers, and two jammed nuts secured against the hanger angle. Vertical dimensions establish a six-foot eight-inch clear height and a three-foot six-inch handrail height alongside specific clearances for the conveyor bag and obstruction-free zone.
OBSTRUCTION FREE ZONE HANGER ANGLE CLEAR HEIGHT 6'-8" HANDRAIL 3'-6" 1'-9" 4" 2'-3" 6'-11" 8" 1'-9" BAG R.O.W. 3'-0" 9" 3'-3" 3/4" ALL-THREAD FLAT WASHER SPLIT RING LOCK WASHER HANGER ANGLE JAMMED NUTS (2)
