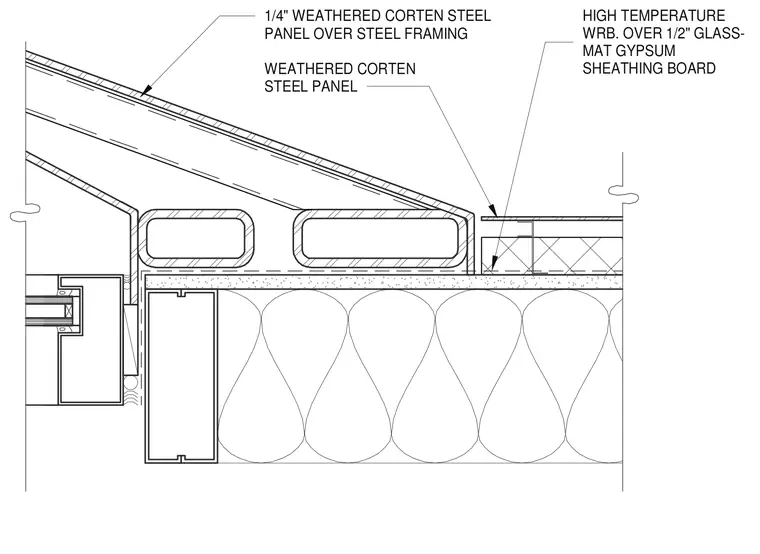

This architectural detail shows a storefront head condition adjacent to a weathering steel panel assembly over steel framing. The exterior finish consists of a one-quarter-inch weathered Cor-ten steel panel. The backup wall assembly incorporates a high-temperature weather-resistant barrier applied over one-half-inch glass-mat gypsum sheathing board.
HIGH TEMPERATURE WRB. OVER 1/2" GLASS- MAT GYPSUM SHEATHING BOARD WEATHERED CORTEN STEEL PANEL 1/4" WEATHERED CORTEN STEEL PANEL OVER STEEL FRAMING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
