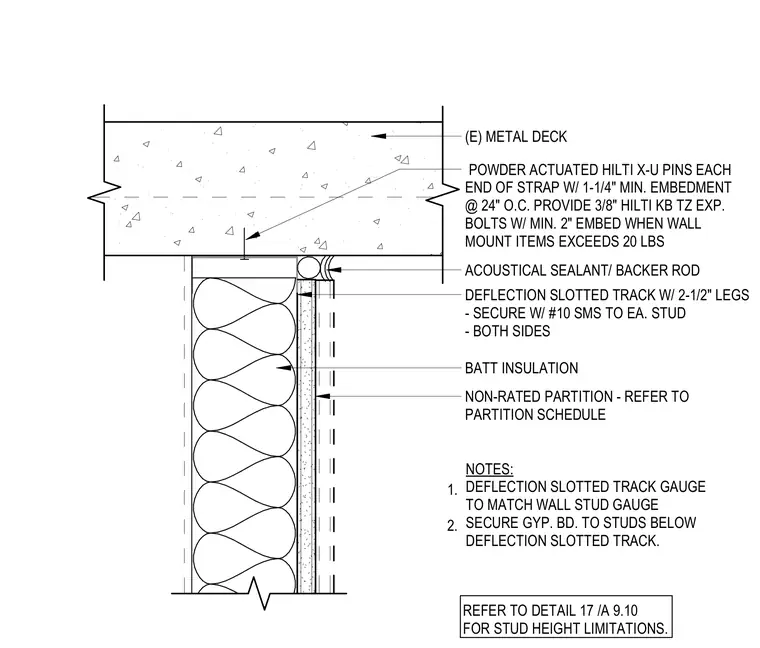

Head-of-wall connection for a non-rated metal stud partition running parallel to an existing metal deck. A deflection slotted track featuring two-and-a-half-inch legs is secured to the wall studs on both sides using number ten sheet metal screws. Batt insulation fills the stud cavity, and the gypsum board is fastened to the studs below the deflection track. Acoustical sealant with a backer rod is applied at the wall-to-deck joint. Powder-actuated Hilti X-U pins with a one-and-one-quarter-inch minimum embedment are spaced at twenty-four inches on center, and three-eighths-inch Hilti KB-TZ expansion bolts with a two-inch minimum embedment are provided when wall-mounted items exceed twenty pounds.
(E) METAL DECK POWDER ACTUATED HILTI X-U PINS EACH END OF STRAP W/ 1-1/4" MIN. EMBEDMENT @ 24" O.C. PROVIDE 3/8" HILTI KB TZ EXP. BOLTS W/ MIN. 2" EMBED WHEN WALL MOUNT ITEMS EXCEEDS 20 LBS DEFLECTION SLOTTED TRACK W/ 2-1/2" LEGS - SECURE W/ #10 SMS TO EA. STUD - BOTH SIDES BATT INSULATION NON-RATED PARTITION - REFER TO PARTITION SCHEDULE NOTES: DEFLECTION SLOTTED TRACK GAUGE TO MATCH WALL STUD GAUGE SECURE GYP. BD. TO STUDS BELOW DEFLECTION SLOTTED TRACK. 1. 2. ACOUSTICAL SEALANT/ BACKER ROD REFER TO DETAIL 17 /A 9.10 FOR STUD HEIGHT LIMITATIONS.
