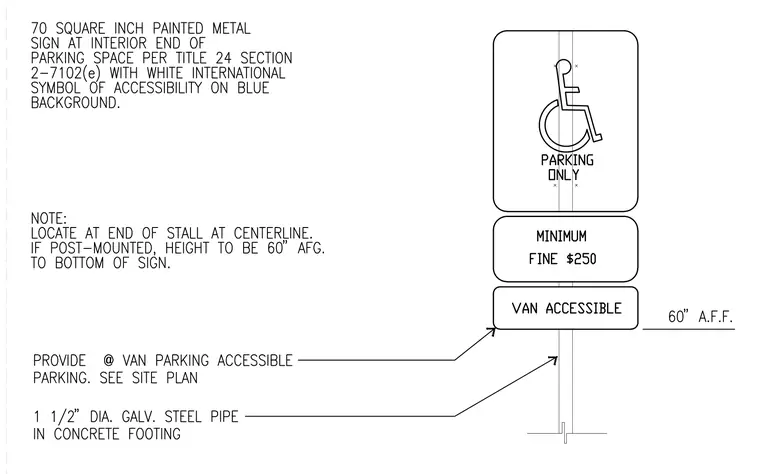

A 70 square inch painted metal sign featuring the white international symbol of accessibility on a blue background is mounted with a minimum fine notice and van accessible supplemental plaque. The assembly is supported by a 1 1/2-inch diameter galvanized steel pipe set into a concrete footing. The sign is positioned at the centerline of the stall end with the bottom of the sign located at 60 inches above finished floor.
