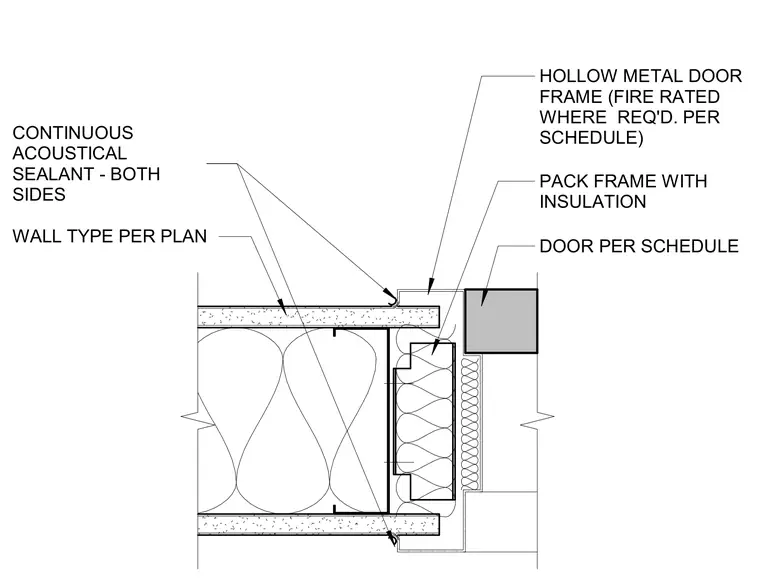

This interior hollow metal door frame jamb detail shows the frame installed within a partition wall per plan, complete with a door per schedule. The hollow metal door frame is fire-rated where required per schedule and is packed solid with insulation. Continuous acoustical sealant is applied to both sides at the junction between the frame and the wall finish.
DOOR PER SCHEDULE WALL TYPE PER PLAN HOLLOW METAL DOOR FRAME (FIRE RATED WHERE REQ'D. PER SCHEDULE) CONTINUOUS ACOUSTICAL SEALANT - BOTH SIDES PACK FRAME WITH INSULATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
