Storage Electric Water Heater

Materials

Elements

About this detail

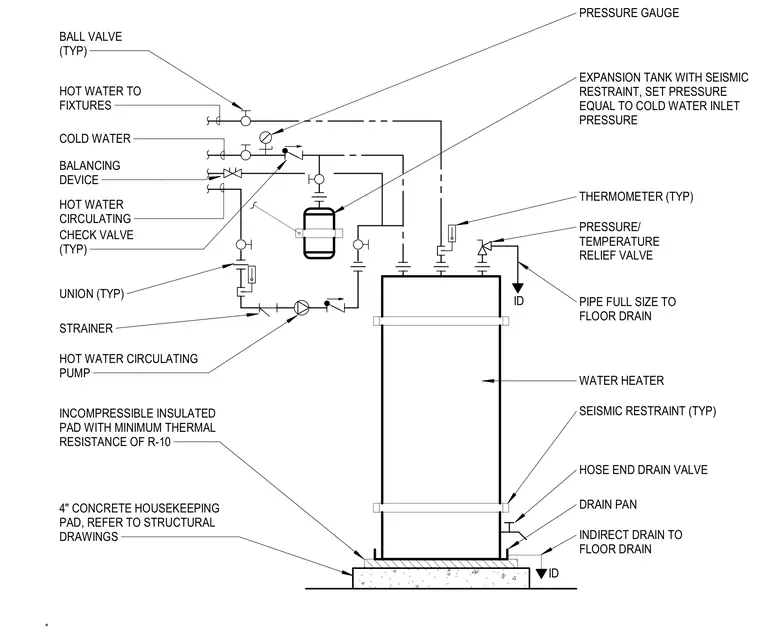

A vertical storage electric water heater mounts on an incompressible insulated pad with a minimum thermal resistance of R-10, set atop a four-inch concrete housekeeping pad. The unit is secured with typical seismic restraints and sits within a drain pan featuring an indirect drain to the floor drain and a hose end drain valve. Cold water enters through a ball valve, union, pressure gauge, and check valve, while a parallel expansion tank with seismic restraints connects to the system with its set pressure equal to the cold water inlet pressure. Hot water exits through a pressure and temperature relief valve discharging through a full-size pipe to the floor drain, and routes to fixtures via a ball valve, union, thermometer, and balancing device. A hot water circulating pump and strainer tie into the return loop via check valves and unions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
